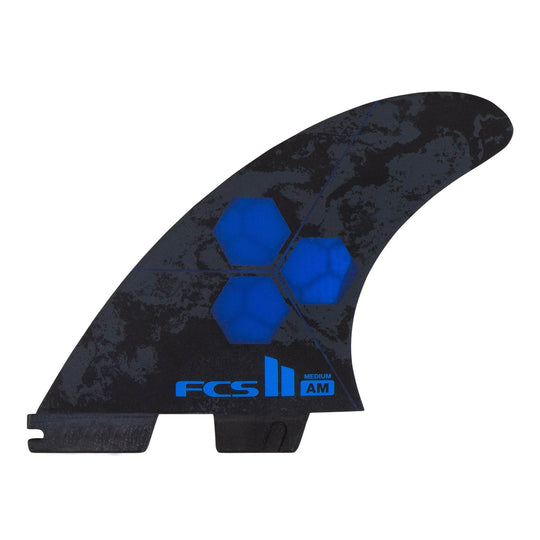

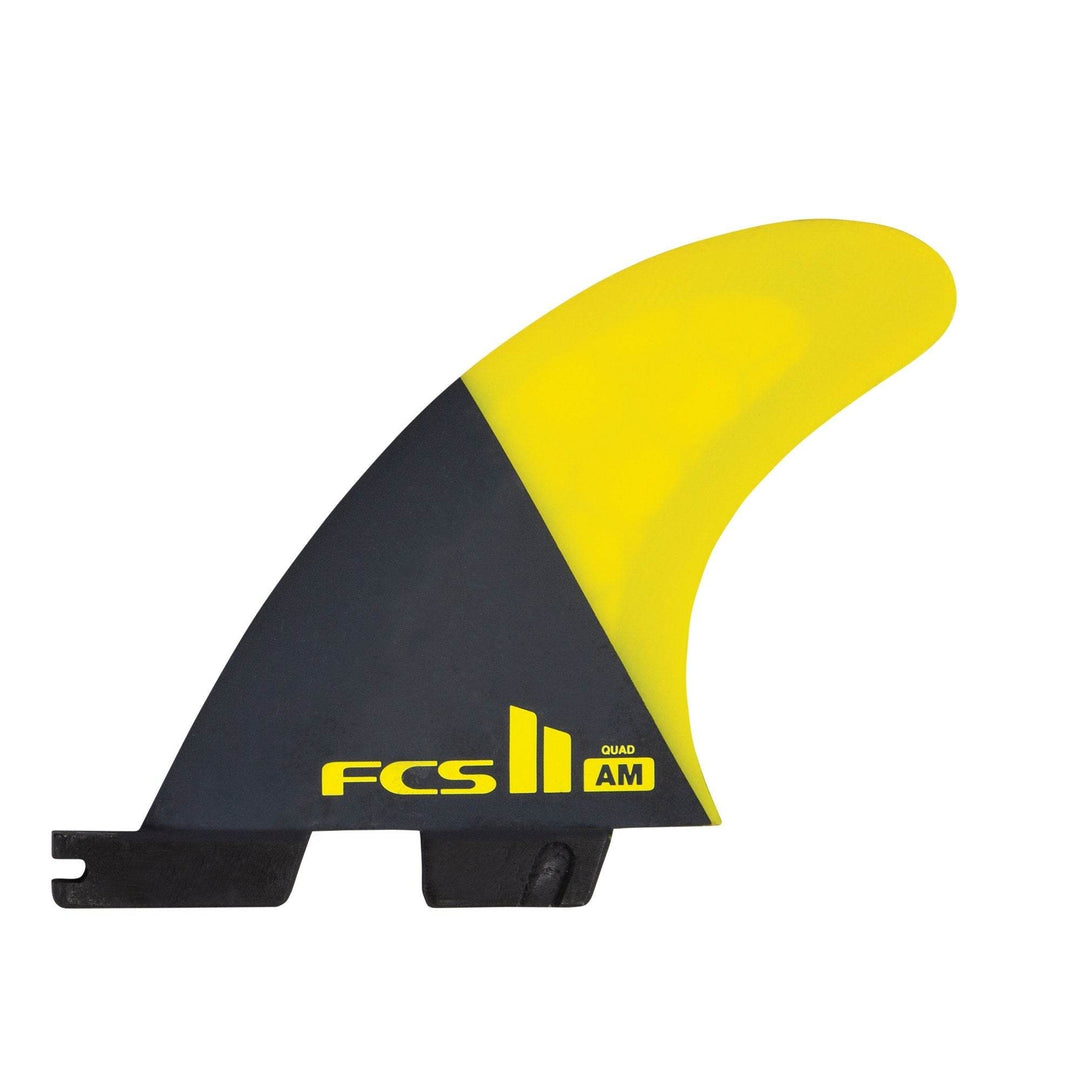

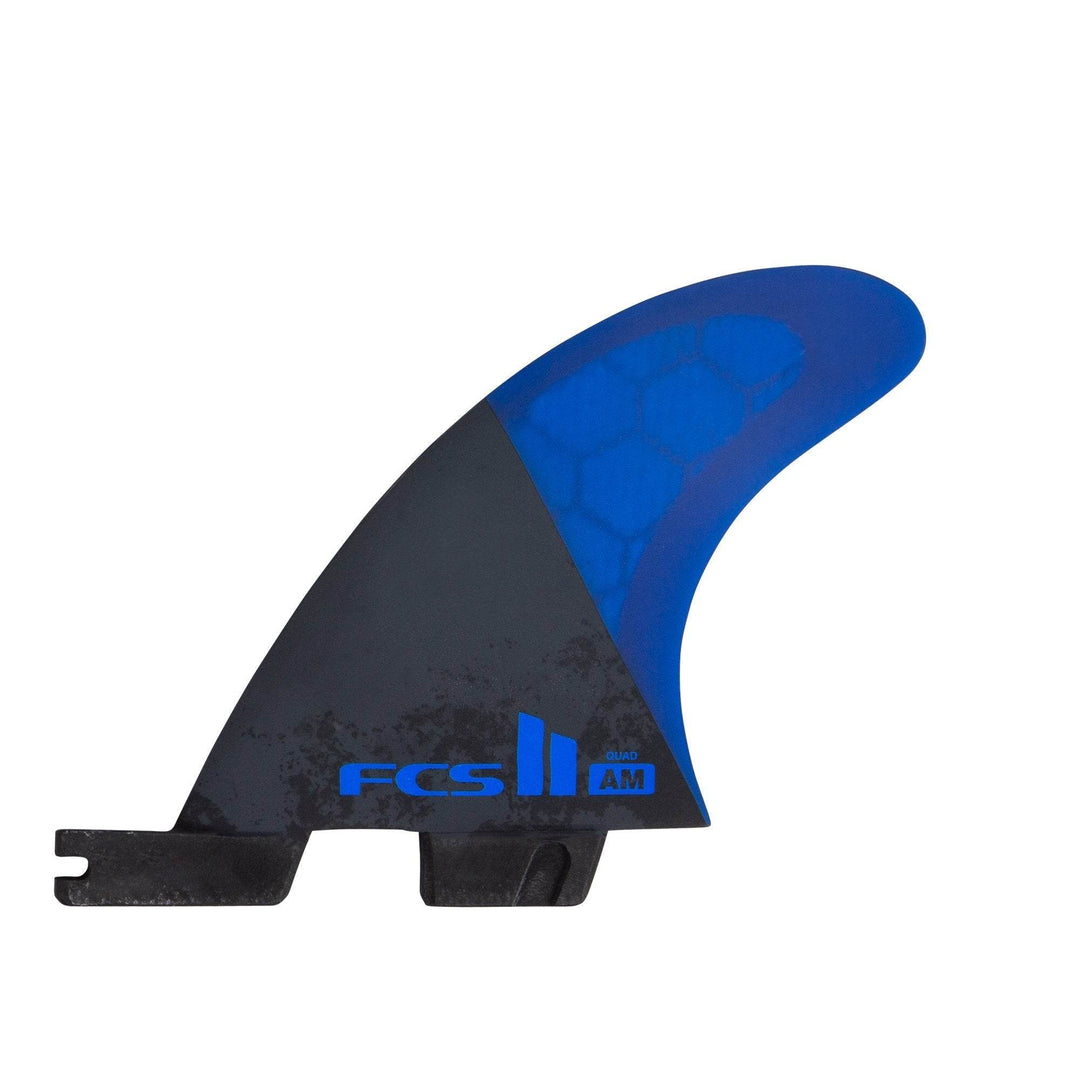

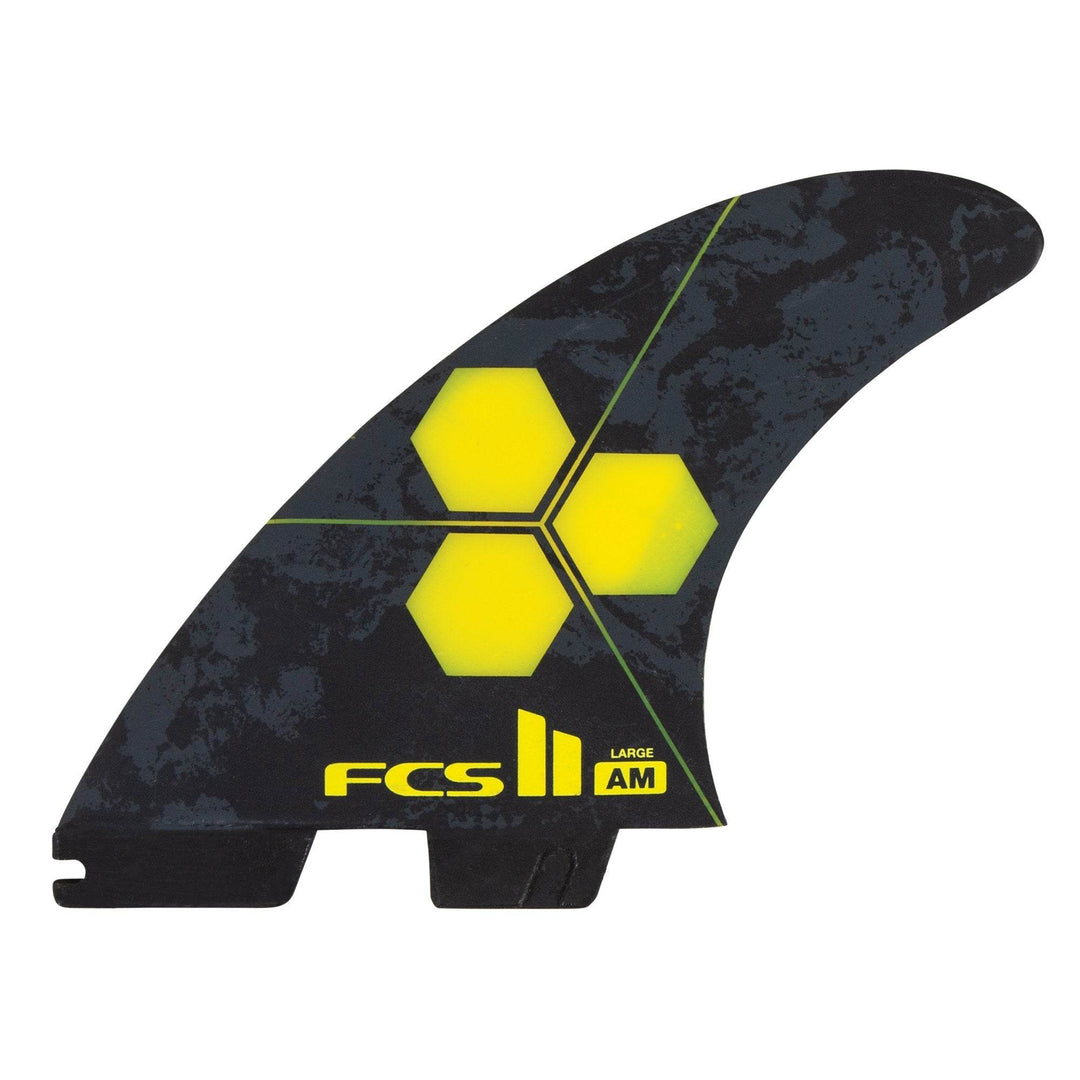

FCS II Al Merrick Tri-Quad Fins
Al Merrick's 'AM' shaper fin. Raked side fins produce exceptional speed and drive.
-
Overview
- Al Merrick's template is designed for radical, progressive surfing.
- The raked side fins produce exceptional speed and drive, while the smaller centre fin on the medium and large template offer quick release through turns.
- Tri/Quad (5 fin) set
Ideal Conditions
- Hollow steep waves, punchy beach breaks.
Board Types
- Designed to fit the FCS II Fin System.
- Performance boards with deep concaves and moderate-to-extreme rocker.
Fin Family
- Carver: Find Power. Powerful, drawn-out turns with added hold.
-
Performance Core
Performance Core (PC) fins are made using a multi-layered resin transfer molding process. The flex pattern in PC fins extends progressively from the base through to the tip, helping the surfer to maintain drive and hold through a turn. This versatile fin material is light, and can be used in a variety of different conditions.
-
MEDIUM (65Kg - 80Kg / 145 - 175 Lbs)
LARGE (75Kg - 90Kg / 165 - 200 Lbs)Fin Base (inches)
Base (mm)
Depth (inches)
Depth (mm)
Area (inches)
Area (mm)
Sweep Deg°
Foil
MED (Side) 4.57 116.0 4.53 115.0 14.89 9608 36.6° Flat
MED (Ctr) 4.33 110.0 4.41 112.0 13.72 8852 35.0° Flat MED (Q-Rear) 3.83 97 3.99 101 11.08 7150 32.4° 80/20 LRG (side) 4.61 117.1 4.69 119.0 15.63 10083 36.3° Flat LRG (Ctr) 4.47 113.5 4.45 113.0 14.68 9469 38.6° 50/50 LRG (Q-Rear) 4.09 104 4.26 108 12.63 8150 32.4° 80/20 View the FCS Fin Data page for Base/Depth/Area/Foil information.
-
